Ironwork Raising, Manhole Adjustment & Ground Excavation
Ironwork raising is the step that keeps a resurfaced car park, road or private yard safe, level and compliant. For highways engineers, utility contractors, and site managers across the East Midlands and South Yorkshire.
Why Ironwork Raising Matters
Every new asphalt layer changes the finished surface level. A 40mm overlay lifts the surface by 40mm — which leaves every manhole cover, drain grate and utility box sitting 40mm below the new surface. Left alone, that creates three problems: a trip hazard for pedestrians, a damage point for vehicle tyres and suspension, and a fast-failing edge where water gets in around the cover and the new asphalt breaks up.
Ironwork raising lifts every cover back to flush, re-beds the frame on fresh mortar or concrete, and reinstates the asphalt cleanly around the new perimeter. It's a specialist task that highway engineers, utility contractors and commercial site owners specify as standard — not an optional extra.
Paddway Roadworks is an ironwork raising contractor serving commercial sites, highways projects, utility works and private estates across Nottinghamshire, Lincolnshire and South Yorkshire. Call 07958 211323 or request a quote.
Types of Ironwork We Raise and Adjust
Manhole Cover Raising
Heavy-duty and light-duty manhole covers on car parks, access roads, carriageways and private yards. We lift the frame, adjust the chamber seating with engineering bricks or concrete, and re-bed the cover flush to the new surface level. Frame and cover reused where sound, replaced where not.
Drain and Gully Cover Raising
Gully grates, yard gullies, slot drains and channel drains. Same principle as manhole raising but with extra attention to drainage flow — the gully has to stay at or below surrounding surface level to keep the drainage working. We protect the drainage run during the lift.
Stop Tap and Valve Box Adjustment
Water stop tap boxes, gas valve covers, BT/Openreach boxes, and other small utility ironwork. Lower risk than full manhole work but still critical — a sunken stop tap box collects water and fails over winter. We raise, re-bed and reinstate.

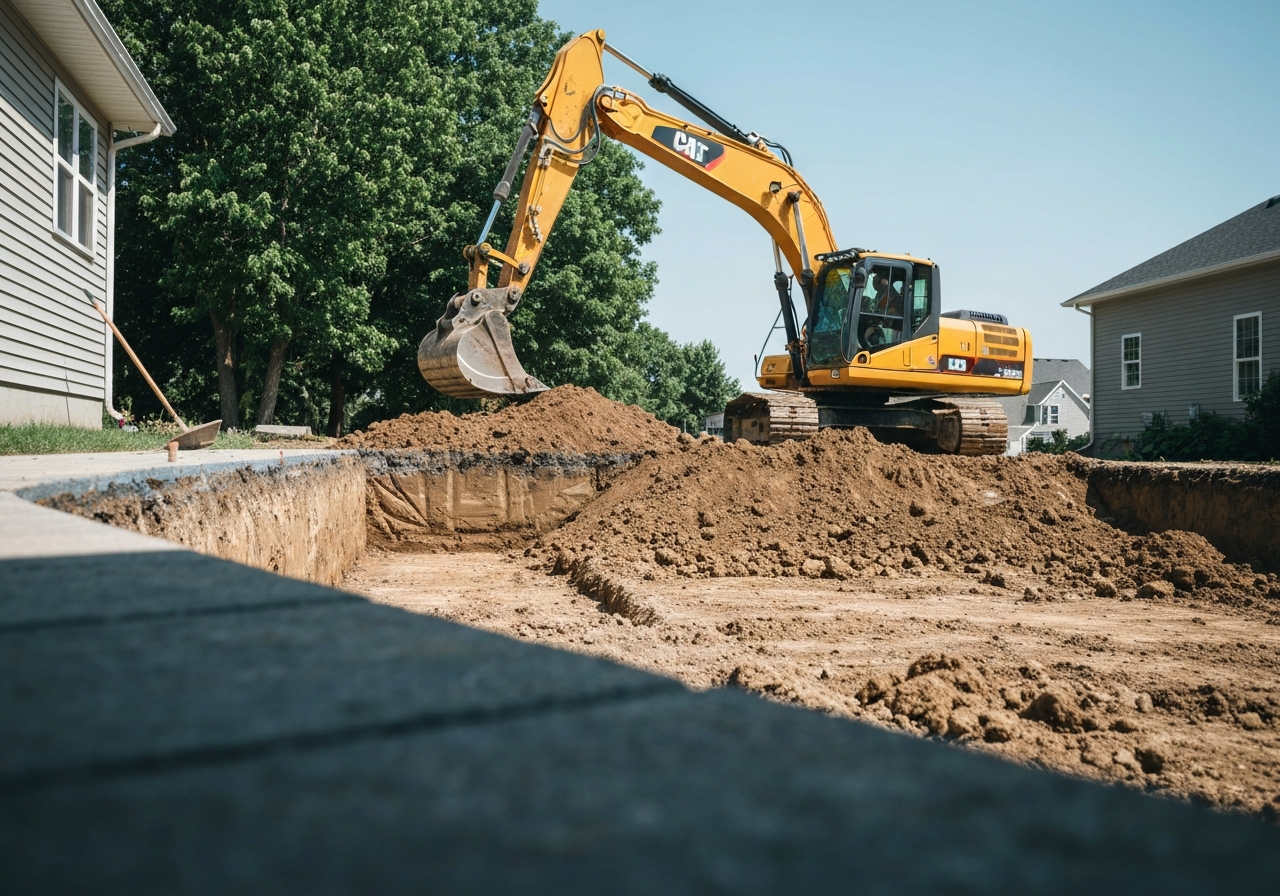

Ground Excavation for Sub-Base
Where new ironwork is being installed — a new drainage run, a new inspection chamber, a new utility access box — we handle the groundworks from excavation through sub-base preparation to ironwork seating. Often bundled with a full resurfacing or driveway build so the site isn't opened twice.
Why Raise Ironwork Properly
Surface stays level
No humps, no dips, no trip hazard around the cover edges.
No damage to covers or vehicles
A cover sitting proud or sunk takes a beating from every passing vehicle — and so do their tyres and suspension.
Covers don't fail early
Water ingress around a badly-seated cover is the fastest way to crack the surrounding asphalt and break the cover seat.
Compliant with highways and utility spec
Raising to the correct level to spec is standard on any adopted road or utility job. We work to that spec on private commercial sites too.
One team handles the whole job
You don't manage a surfacing contractor and a separate ironwork subbie — we do both.
Our Ironwork Raising Process
Site survey and measurement
We identify every manhole, drain, gully and utility box on the site. Current levels recorded, new levels planned against the proposed or completed surface finish.
Excavation around the cover
The asphalt or concrete around each frame is saw-cut and broken out cleanly. Chamber inspected, cover and frame lifted out.

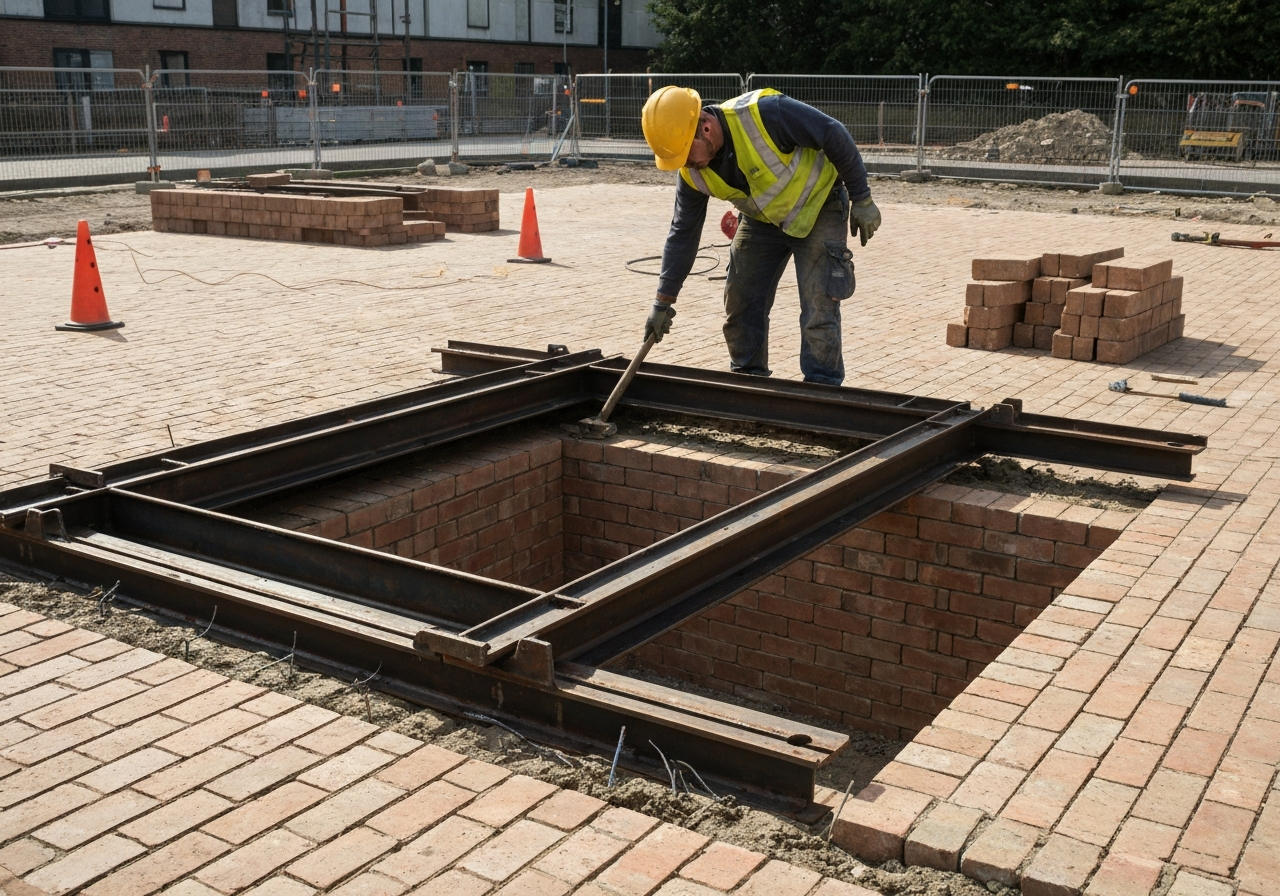

Frame lift and re-seating
The frame is re-seated on engineering brick courses or concrete collars to bring it to the planned new finished level.
Mortar or concrete bedding
Frame bedded on fresh mortar or haunched in concrete as specified. Cover checked for level and fit before the asphalt goes back.
Reinstatement
Hot-rolled asphalt or concrete is re-laid around the raised cover, compacted, and edge-sealed. The finished cover sits flush to the surface, not proud, not sunk.
Why Paddway Roadworks for Ironwork Raising
Bundled with resurfacing
Most commercial resurfacing jobs require ironwork raising. With us, it's one crew, one programme, one invoice. No coordination risk.
17 years on the tools
Jamie has been doing this since 2009. Ironwork raising is part of the trade — not an outsourced bolt-on.
Full excavation kit
Saw-cutting, breaking, digging, bedding, reinstatement — all in-house. We don't hire in at mark-up.
Commercial insurance ready
We work to your site's H&S induction and we carry the insurance cover commercial clients expect.
Areas We Cover for Ironwork Raising
Ironwork raising and ground excavation across Nottinghamshire, Lincolnshire and South Yorkshire — 14 towns including Retford (home), Doncaster, Lincoln, Newark, Worksop, Sheffield, Peterborough and the wider East Midlands. Based at Trinity Fields Road, Retford.
Recent Ironwork Raising Projects

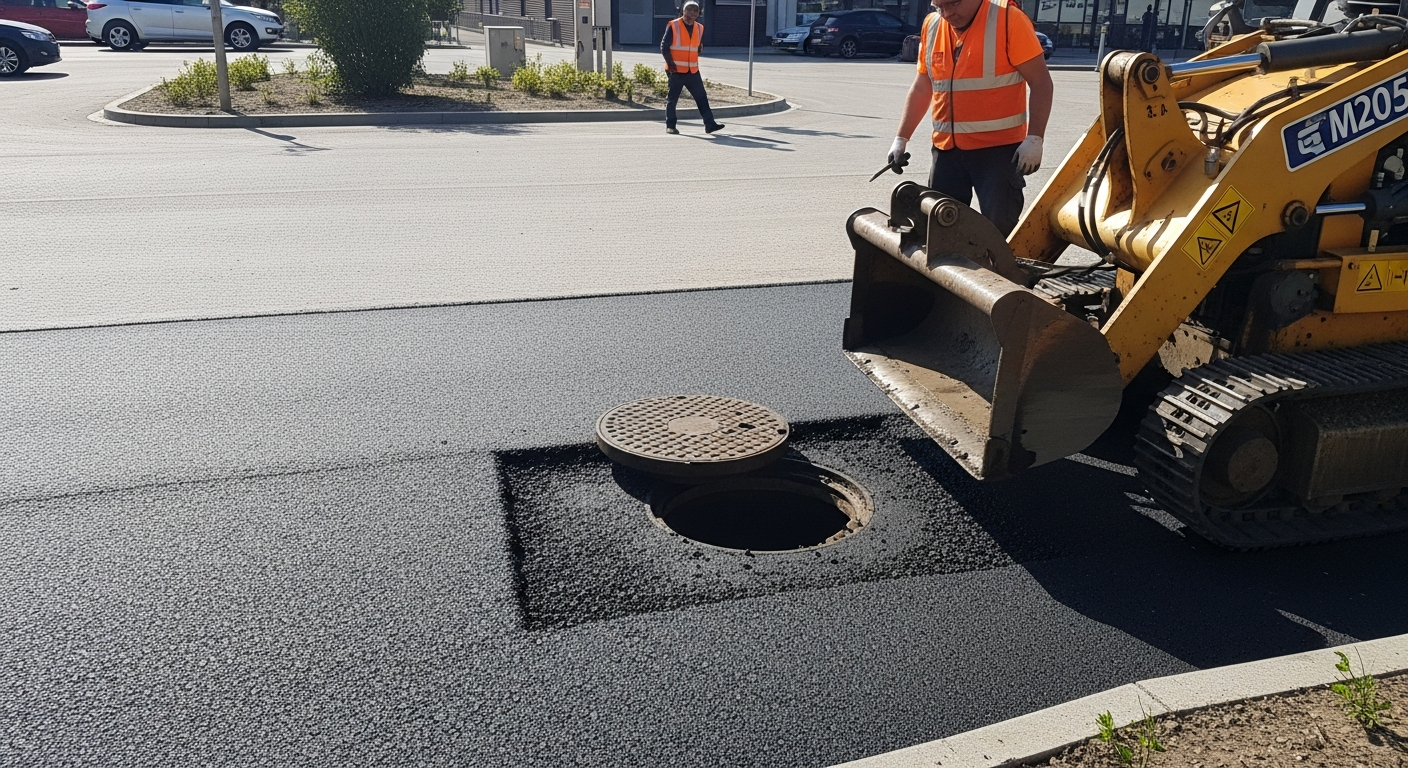

Manhole cover raising

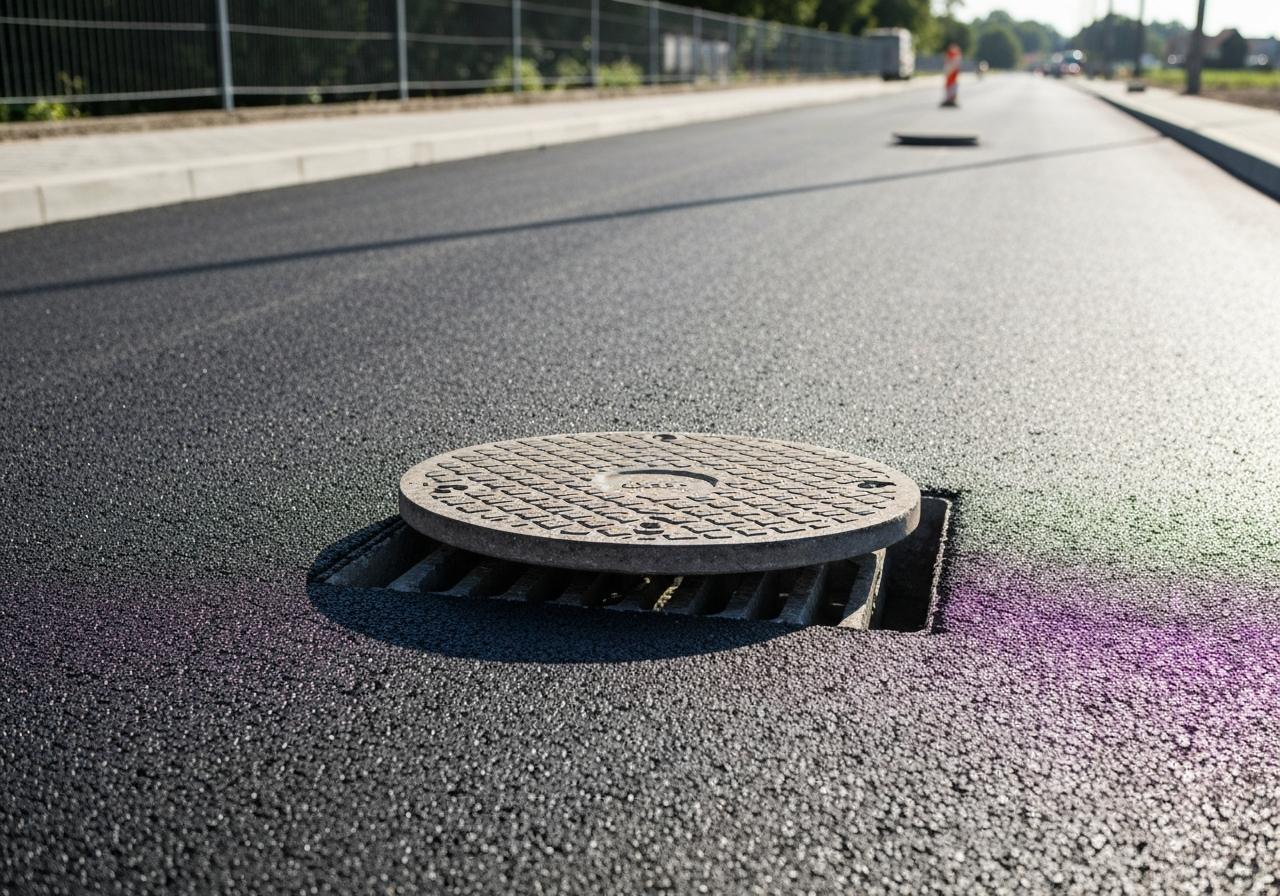

Drain gully reset

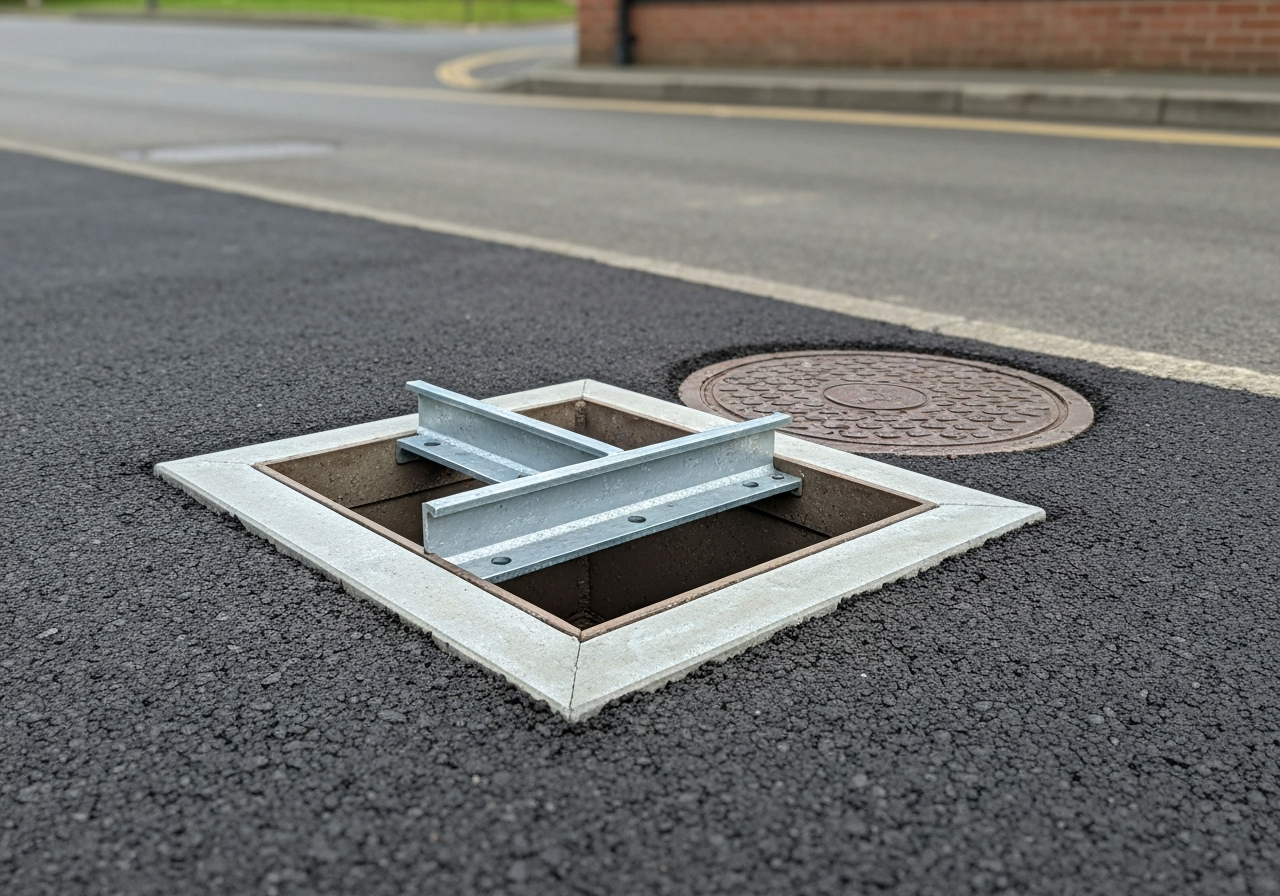

Flush finished level reinstatement
Ironwork Raising Pricing Guidance
Ironwork raising is priced per cover on standalone jobs, or at a bundled rate when carried out as part of resurfacing. What moves the price:
- Cover type and size — light-duty gully covers are quicker than heavy-duty manhole frames.
- Height change required — a 40mm lift is different to a 100mm lift; the latter needs more build-up courses.
- Bedding material — mortar bed vs full concrete haunch depending on spec.
- Access — can we get excavation and reinstatement plant to the cover, or is it a hand-dig?
- Reinstatement spec — matching tarmac, matching concrete, or matching block paving around the cover.
When ironwork raising is bundled with a full resurface, the per-cover cost drops because we're already on site with the kit. Every quote is written, itemised, free.
Trusted by Commercial Clients
Paddway Roadworks Ltd — Companies House 16981469, incorporated January 2026. Jamie Robinson — 17 years trade experience on residential and commercial surfacing including highways-spec ironwork. Follow our work on Facebook.
Paddwayroadworks ltd
"Jamie and the team did a fantastic job. Professional, clean, and the finish is perfect. Highly recommend!"
Ironwork Raising FAQs
Ready to Quote Your Ironwork Job?
Call Jamie on 07958 211323 or send the project details. We'll come out, measure, and send a written itemised quote within 48 hours.
